Frames

AustriAlpin FC28SB BLACK KTL Slideblock steel frame with movable self-locking beam 7.5kN for webbing 25mm – 28mm

CODE: FC28SB_en

Buckle dimensions:
Width – 42mm
Height – 52mm
Thickness (including profiling) – 9mm
Weight – 35g

5,31 €

(Gross)

Net price:

4,32 €

84 in stock

EU product

5 year warranty

Shipping in 2 days

EAN13: 9006381482894

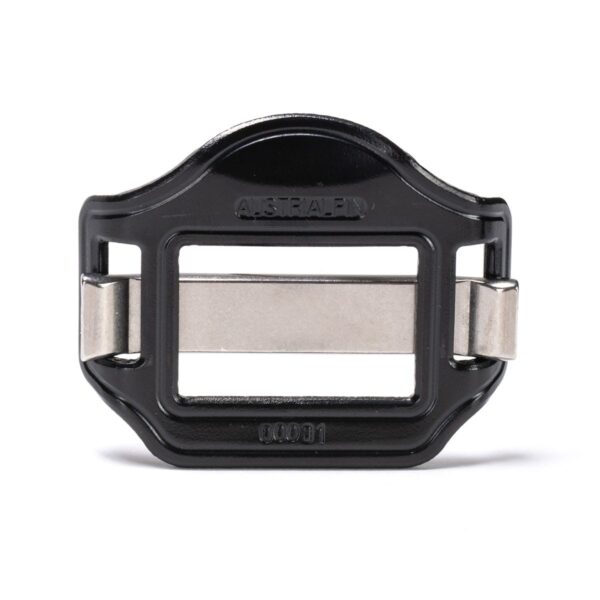

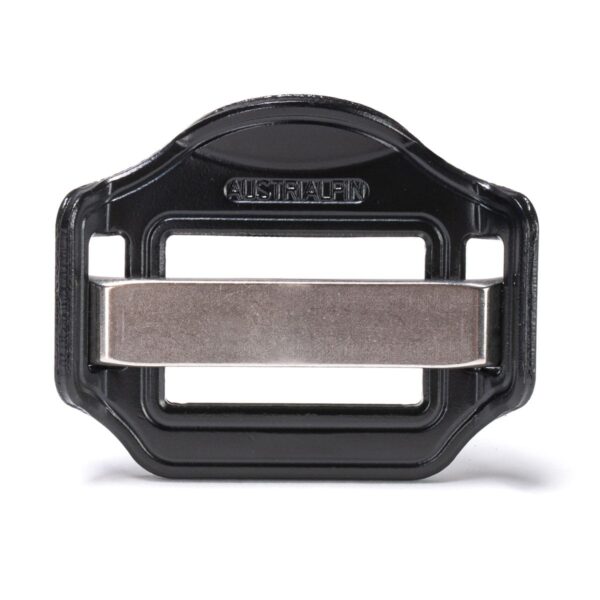

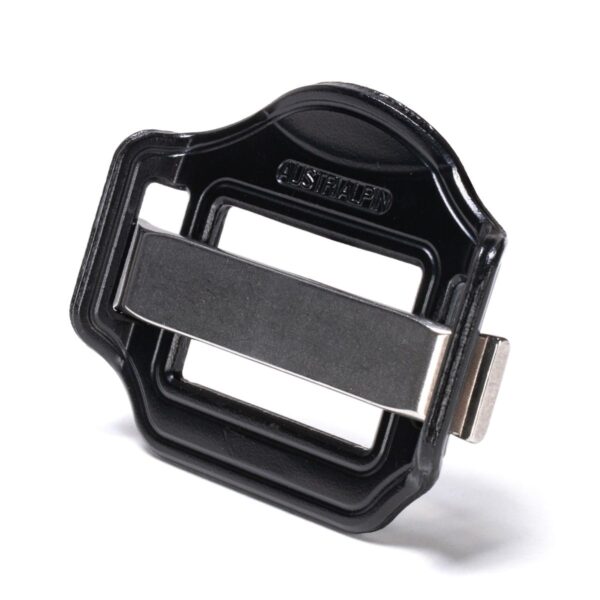

AustriAlpin FC28SB black slideblock steel frame with self-locking beam for webbing 25mm-28mm

Frame used as a stand-alone, inseparable buckle (similar to Cobra® Frame) sewn on one side, on the other interwoven with a self-locking beam. It can also be used as a belt end protection. A huge advantage is the flat design and high durability.

Buckle dimensions

Width - 42mm

Height - 52mm

Thickness (including profiling) - 9mm

Weight - 35g

Gap width (total, without self-locking steel beam) - 18mm

Material - stainless steel, black oxidized frame

Static strength - 7.5kN

Loop strength - 15kN depending on the strength of the tape and sewing.

NOTE:

Buckles are tools and are shipped from the factory in a bulk package. There may be minor scratches or dents on the buckle coating.

Brand	BAYONET
Manufacturer code	FC28SB_en
EAN (GTIN)	empty
Buckle color	KTL Black
Type of clamp	Slideblock
Bracket coverage	KTL coating (Standard)
Buckle width	25mm
Buckle strength	7.5kN
Mounting Type	Adjustable-Sewn-in
Acceptable tape thickness	Not applicable
