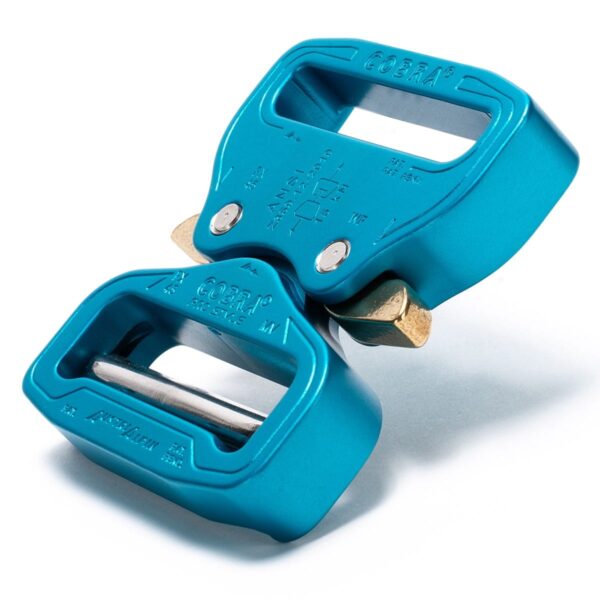

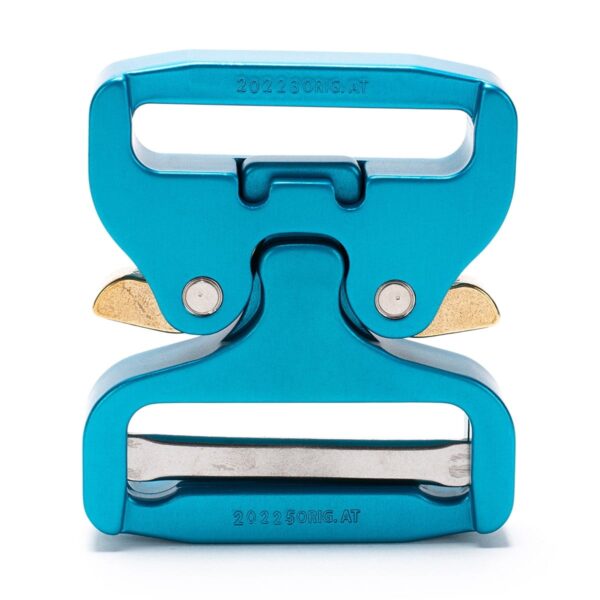

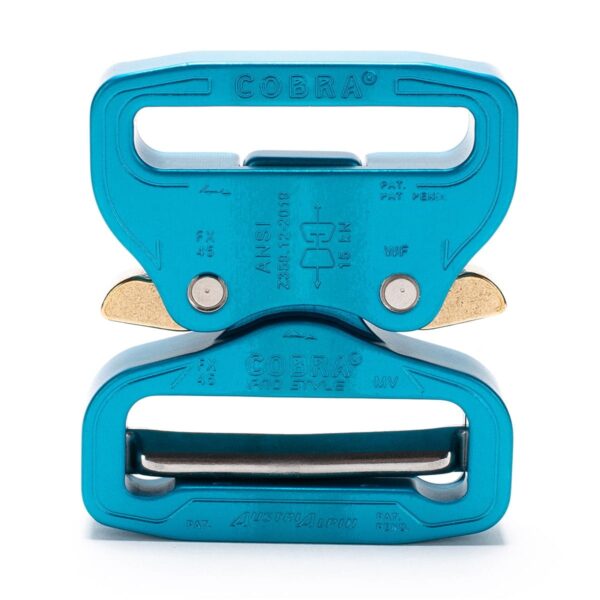

ANSI D-RING COBRA® PRO STYLE 15kN buckle
Compared to the COBRA® PRO STYLE 9kN buckle, it has a thicker release mechanism and thicker pins that keep the ears in body. It is not compatible with other buckles and 3 and 4-way panels. The D-Ring is rotating, has a significant resistance when changing position.
The dimension of the tape gap is given in the product title in millimeters.
Buckle dimensions:
- width - 58mm
- height - 66mm
- thickness - 12mm
- weight - 91g
Buckle Materials:
- body - aluminum 7075
- ears - brass
- ear pins, clamping beam - stainless steel
Buckle strength - 15kN
The strength of the belt with the buckle is a 30kN and depends on the strength of the webbing and sewing.
Standards: ANSI / ASSE Z359.12-2019, CSA Z259.12-2016 Class I, EN358: 2018-11 (partial)
DESCRIPTION:
The new adaptions to the patented locking mechanism allow for easier locking, which can be confirmed by the distinct 'clicking' sound made when properly locked. One-sided locking of the buckle is essentially impossible. The ANSI COBRA® PRO STYLE distinguishes itself by the high flexibility between the male and female parts while the buckle is closed. All ANSI COBRA® PRO STYLE buckles are compatible.
The ANSI COBRA® PRO STYLE, certified according to the American safety standard ANSI, is thicker and even stronger than the COBRA® PRO STYLE. This buckle is marked according to the ANSI norm with a guaranteed tensile strength of 15 kN. However, we guarantee 18 kN for the buckle and 22 kN for the d-ring and point this out in the technical specifications accordingly. Certified according to ANSI/ASSE and upon request NFPA.
NOTE: Buckles are tools and are shipped from the factory in a multipack. There may be slight some minimal scratches or bumps on coatings.
NOTE: Buckles with the most durable coatings anodized BLACK MATT and hardcoated gray coating are produced in separate processes, it happens that the coatings of the male and female halves have a different shade, sometimes the differences are visible to the first view. THIS DOES NOT ALLOW TO RETURN BUCKLE OR FOR COMPLAINT. If aesthetics is the most important for you, we suggest choosing painted buckles, with HPC coating or black KTL (with golden ears).
