EAN13 code: 9006381010240
BASIC INFORMATION
COBRA® PRO STYLE 9kN is an improved model of the COBRA® THE ORYGINAL buckle, it is slightly higher, the curves of the clasp are routed differently, thanks to which the possibility of fastening only on one side, with a single ear, has been almost completely eliminated. Holes have been added from the bottom to facilitate cleaning the buckle from mud, sand and snow. It is only compatible with PRO STYLE 9kN buckles in various widths and 3 and 4-way PRO STYLE panels.
TECHNICAL DATA
Buckle dimensions:
Webbing slot size and recommended webbing width - 25mm
Width - 39mm
Height - 50mm
Thickness - 10mm
Weight - 49g
Buckle materials:
body - 7075 aluminum
ears - brass
ear pins, clamping beam - stainless steel
Buckle strength: 9kN
Loop strength using buckle: 18kN depending on webbing strength and sewing.
Standards: EN358:2018-11 (partial), EN ISO 9227
DESCRIPTION
COBRA® PRO STYLE is a buckle that meets the highest safety requirements for users, as it can only be opened by pushing the halves together by pressing both ears simultaneously. The locking mechanism allows the locking elements to engage easily, as confirmed by a clear clicking sound.

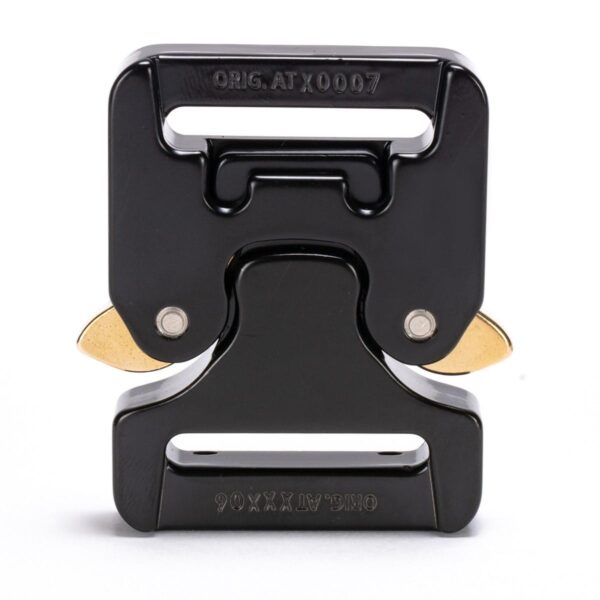

The COBRA® PRO STYLE locking mechanism is an evolution of COBRA® THE ORIGINAL, which guarantees an even safer application. In addition, the larger cutout at the back of COBRA® PRO STYLE prevents dirt, dust, ice or snow from catching on the buckle, which further increases its usability and durability.
All COBRA® PRO STYLE sizes are mutually compatible. In combination with a lashing strap, the minimum guaranteed load capacity is 18 kN in a loop configuration.
FINAL REMARKS
The buckles are tools and are shipped from the factory in bulk packaging. There may be minor scratches or dents on the buckle coating.
The buckles with the most durable HARDCOATED GRAY coating and with the ANODIZED coating are manufactured in separate processes, it happens that the coating of the male and female halves of the buckle have a different shade, sometimes the differences are visible to the naked eye. This does not constitute grounds for complaint or return of the product. If aesthetics are most important to you, we suggest choosing buckles with HPC High Performance Coating, with KTL black coating (with gold ears) or powder coated.
